Mini 600 Cfm Duct Fan Kitchen

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

*Suitable for indoor ventilation or pipe pressurization

*Ultra-quiet, optimized structure design, reduce product running noise

*High-strength all-metal casing, powder-coated, fire-resistant and rust-proof, beautiful and durable, with multiple appearance colors are optional

*180-degree straight-in and straight-out air inlet and outlet structure, better adapt to long-distance wind transmission

*Convenient access panel, no need to disassemble the whole unit, only need to remove the access panel on the side of the machine body, the whole machine can be maintained and repaired.

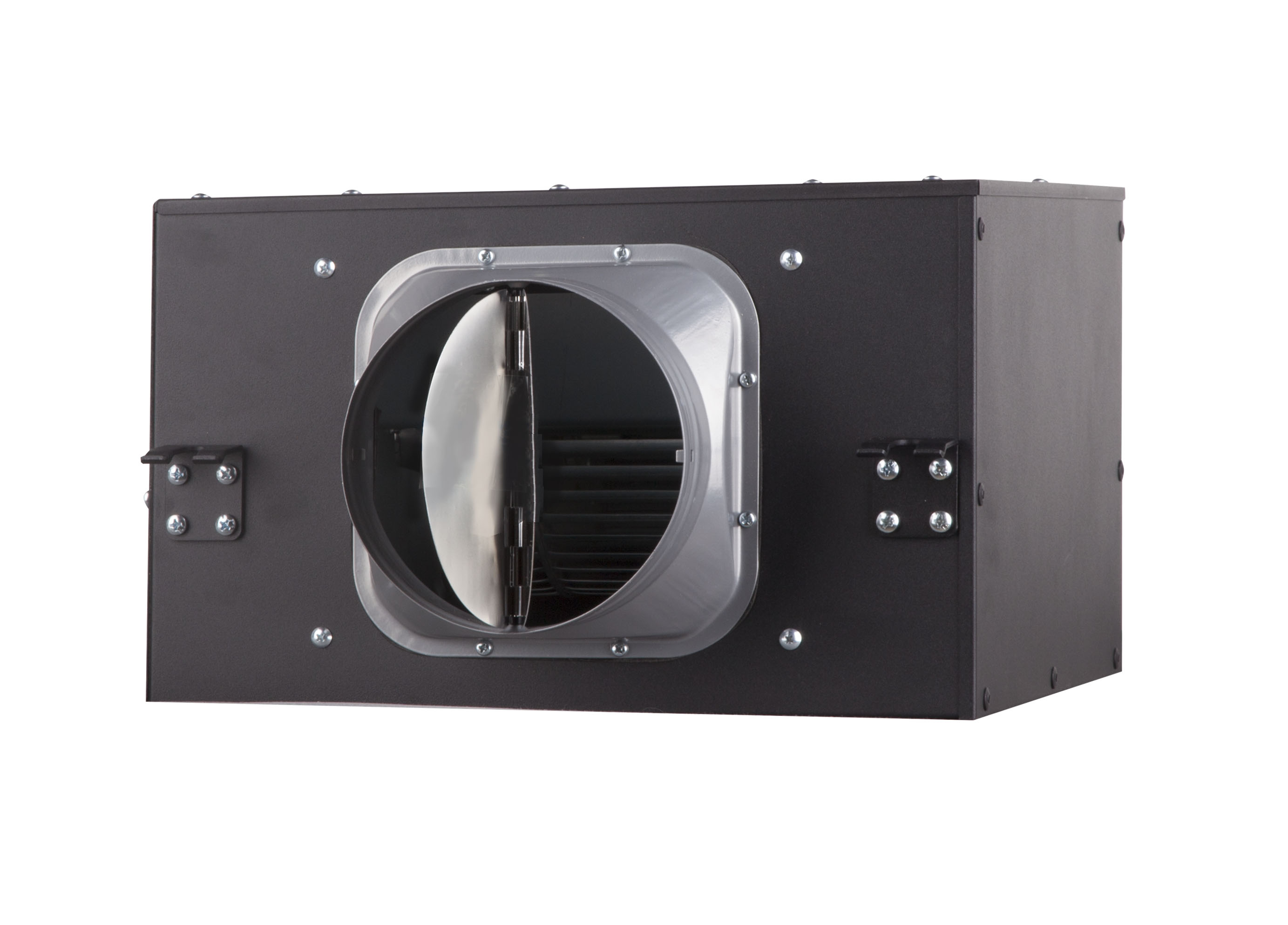

*A check valve is installed at the air inlet, which can prevent the backflow of the air flow, and can also block the invasion of external mosquitoes, adapt to the ventilation needs of long-distance air transmission for products with large air volume and high static pressure.


DPT Series inline duct fan

Model

Voltage/
  Frequency)
   V/(Hz)

Input power(W)

Air volume (m3/h)

Static pressure(Pa)

Noise (dB)

Net weight (Kg)

Gross weight (Kg)

Diameter of connecting pipe

Unit size(mm)

Packing size(mm)

Note

H

L

H

L

H

L

H

L

DPT10-A13

220/50

20

_

120

_

90

_

20

_

5

6

Φ100

290*175*290

535*250*370

Unit size is not include air inlet ,air outlet and   mounting accessories

DPT10-A23

60

_

200

_

290

_

23

_

5

6

Φ100

290*175*290

535*250*370

DPT15-A33L

40

_

250

_

100

_

25

_

5.6

6.5

Φ150

300*190*300

545*265*380

DPT15-A33H

53

_

350

_

150

_

30

_

8.9

10.5

Φ150

360*225*360

605*300*440

DPT15-A43

85

_

500

_

200

_

32

_

12

13.5

Φ150

440*255*440

685*330*520

DPT20-A54L

129

115

700

600

210

180

34

31

12

13.5

Φ200

440*255*440

685*330*520

DPT20-A54H

214

205

900

800

260

230

36

32

14.7

16.5

Φ200

480*280*480

725*355*560

DPT20-A65

285

240

1200

1000

360

300

41

38

19.5

22

Φ200

585*365*520

830*440*600

DPT25-A64

355

320

1500

1350

380

330

42

39

24

26.5

Φ250

580*380*460

825*455*540

DPT25-A75

490

440

2000

1700

430

360

45

42

30

32.5

Φ250

620*380*560

865*455*640


Inline duct systems have grown in popularity as a method of concealed ducted ventilation over the past two decades, especially in the past few years, Inline duct fan is widely used in fresh air system. Meihao inline duct fan DPT series is manufactured in plastic power coated corrosion resistant sheet metal for ease of connection to ductwork.

DPT series duct fan are ideal for ducted applications in residential area, commercial area, and industrial area such as shops, offices, hotels, restaurants, factories, schools, pubs, and kitchens. They are available in a variety of duct size diameters to suit any application.
