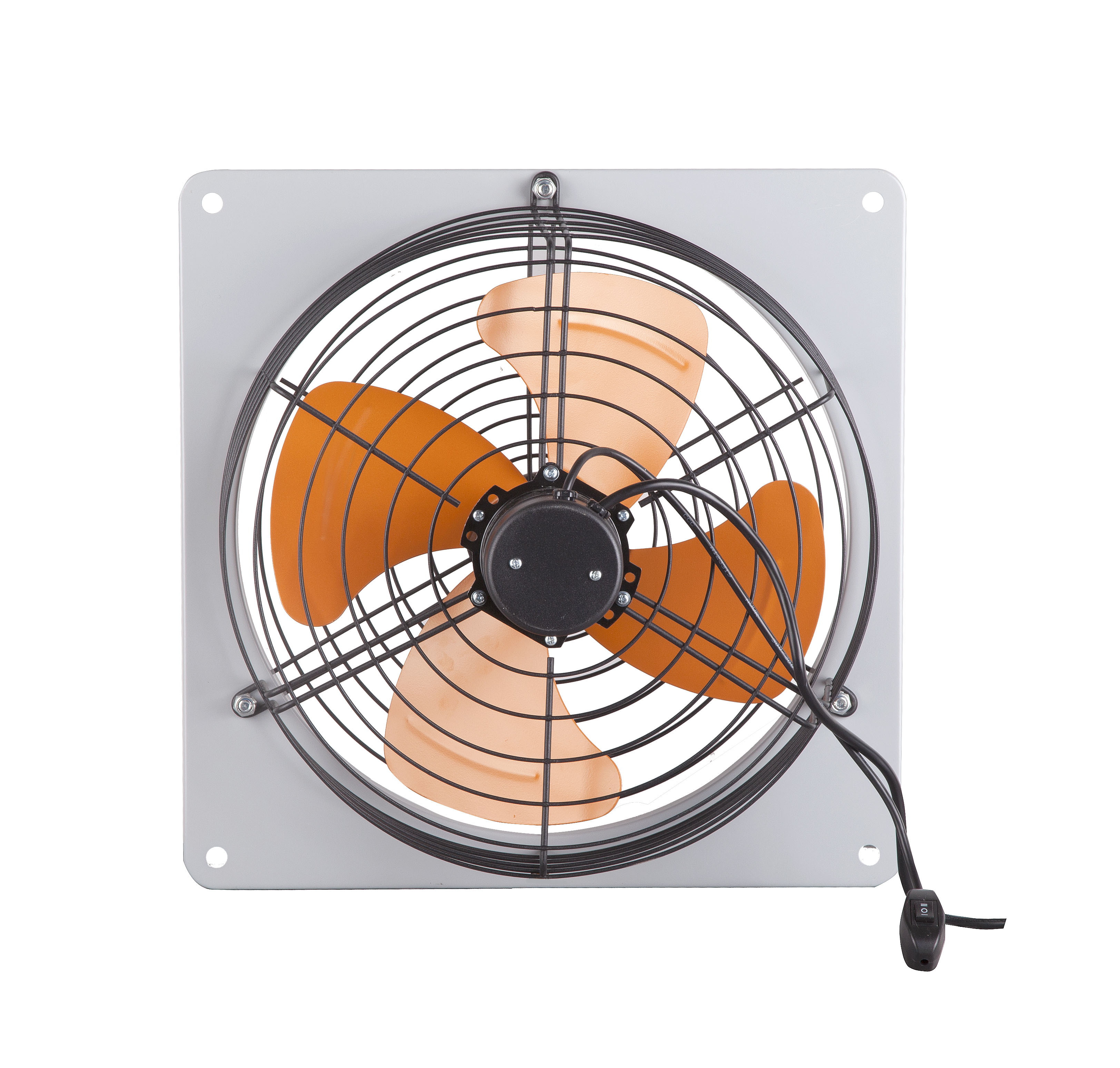

Meihao FA Series Rectangular Exhaust Fan

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Compare with traditional   exhaust fan


Our new upgrade


Normal type

Guard net

Double guard front+back


Single guard or none

Exhuast direction

double direction


single direction

Control system

buttom


none

Motor

Full cooper wire+silicon steel


Aluminum wire+iron

Bearing

Ball bearing


nromal bearing

Fan blade

Unique XX type blade，More quiet、stronger air pressure,adapt to various bad weather


Flat blade，air pressure weak，cause air backflow easily


FP Series rectangular exhaust fan

Model

Voltage/
  (Frequency)
   V/(Hz)

Input power(W)

Speed
  (rpm)

Air volume(m3/h)

Noise (dB)

Net weight (Kg)

Gross weight (Kg)

Unit size (mm)

Mounting size(mm)

Packing size(mm) (LxWxH)

FA-08

220/50

20

1350

800

50

1.9

2.5

280x280

240x240

305x195x315

FA-10

32

1350

1200

52

2.3

3.0

330x330

290x290

355x220x365

FA-12

40

1350

1800

55

2.8

3.7

380x380

340x340

405x220x415

FA-14

60

1350

2200

58

3.7

4.8

430x430

390x390

455x250x465

FA-16

95

1350

3800

66

4.8

6.1

480x480

440x440

505x250x515
